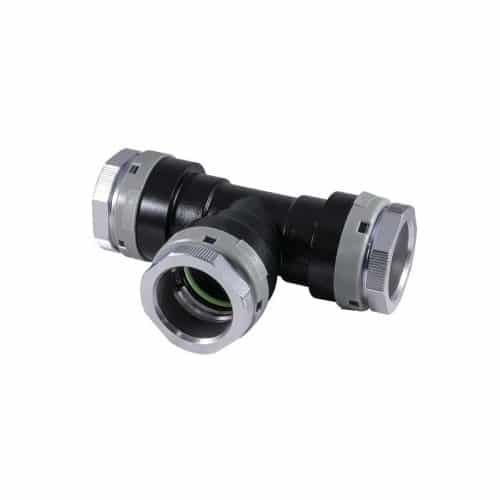

Unipipe Vacuum Equal Tee
$22.80 – $1,412.40
- Additional information
- Unipipe Aluminum Range
Additional information
| Diameter | 3/4 in (20mm), 1 in (25mm), 1 1/4 in (32mm), 1 1/2 in (40mm), 2 in (50mm), 2 1/2 in (63mm), 3 in (75mm), 3 1/2 in (90mm), 4 1/2 in (110mm), 5 in (140mm), 6 in (160mm), 8 in (200mm), 10 in (250mm) |
|---|---|
| System Usage |
The Unipipe Aluminum Pipe Fittings Range:
FITTINGS: 20 (¾”) – 25 (1”) – 40 (1 ½”) – 50 (2”) MM (PF SERIES)
CONNECTION: Push to fit technology EN STANDARD
MATERIALS: Engineered polymer PA6 – GF30 fiberglass reinforcement, Aluminum high pressure die casting EN AC-46100 (Similar to A03830), Wrought aluminum alloy EN AW-6026 (Similar to alloy 6082), EN 1706 (ASTM B85), EN 755-2 (ASTM B221)
SEAL FITTINGS: NBR 70 Sh A (PTFE coating on pipe seal)
FITTINGS: 63 (2 ½”) – 80 (3”) MM (BLACK SERIES)
CONNECTION: Torque to grip technology EN STANDARD
MATERIALS: Aluminum high pressure die casting EN AC-46100 (Similar to A03830), Aluminum permanent mold casting EN AC-43100 (Similar to A13600), Wrought aluminum alloy EN AW-6026 (Similar to alloy 6082), EN 1706 (ASTM B85), EN 1706 (ASTM B85), EN 755-2 (ASTM B221)
SEAL FITTINGS: NBR 70 Sh A

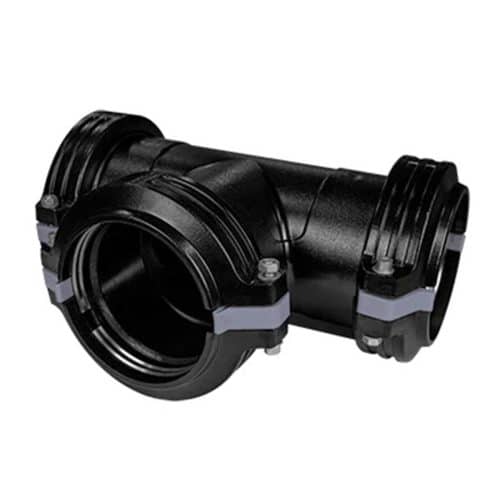

FITTINGS: 100 (4”) – 158 (6”) MM
CONNECTION: Bolt clamp technology EN STANDARD
MATERIALS: Aluminum permanent mold casting EN AC-43100 (Similar to A13600), Stainless Steel EN 1.4301 (Similar to alloy 304), EN 1706 (ESTM B85), EN 10088-2 (AISI 304)
SEAL FITTINGS: NBR 70 Sh A
